Versatile Welded Mesh for Industrial Applications

Tammet’s welded protective mesh is a versatile and durable solution for various applications, such as ceilings, facades, partition walls, machine guards, and structures that require a strong and precise protection mesh.

We offer standard meshes with wire dimensions ranging from 2.8 to 4.8 mm, and the wires we use meet the requirements of the EN ISO 16120-2:2011 standard.

• Durable welded protective mesh for suspended ceilings, facades and technical structures
• Wide range of wire gauges and materials, including stainless and acid-resistant options
• Customer-specific dimensions and RAL-painted or galvanized surfaces with fast delivery

Request a quote

Customisable Steel Mesh with Wire Thickness up to 8.0 mm

Meshes made of steel wire can be powder coated according to the RAL colour chart or alternatively hot-dip or electro-galvanised, while their shaping and cutting can easily be done for various installation and design needs.n.

For more customised applications, we also manufacture heavier meshes on special order, with wire thickness of up to 8.0 mm. Additionally, we offer protective meshes made from stainless and acid-resistant steel wire for demanding environments, such as construction, food, and chemical industries, where corrosion resistance, safety, and hygiene are paramount.

The meshes are delivered as flat sheets on pallets, which facilitates easy handling, storage, and transportation while simultaneously reducing the risk of damage.

In addition to our wide range and quick deliveries, we also offer custom sized products and solutions, including dimensions and surface treatments, in accordance with any special requirements.

This ensures that every customer receives a durable and high-quality mesh solution that is precisely suitable for their application.

Item code	Item	Technical data	Size	Material	Weight	Product media
2074554Z	Welded mesh	50 x 50 mm / Ø 4,1	1250 x 2500 mm	Hot-dip galvanized	4,6 kg/m²

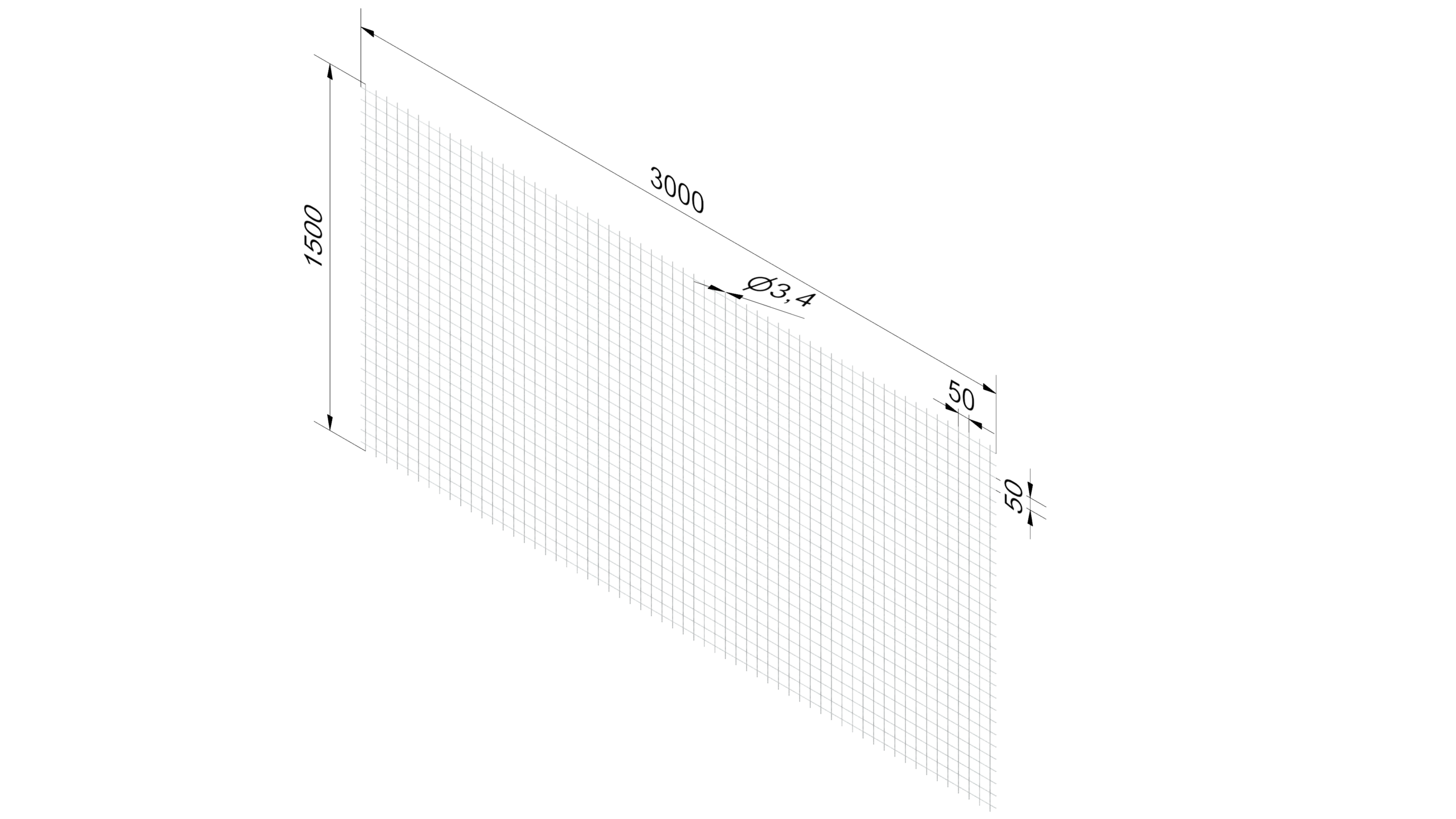

2074552Z	Welded mesh	50 x 50 mm / Ø 3,5	1500 x 3000 mm	Hot-dip galvanized	3,3 kg/m²

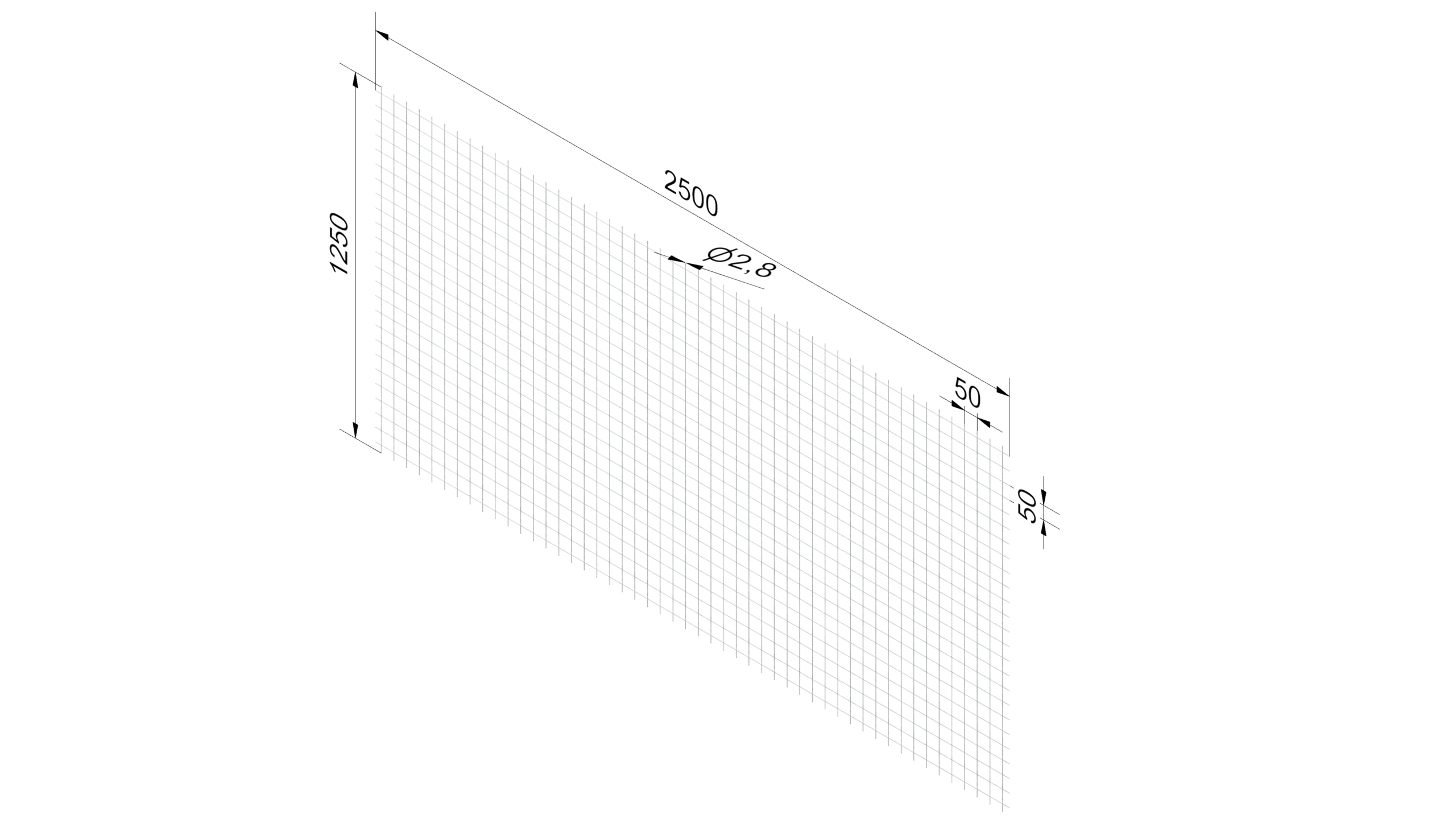

2074551Z	Welded mesh	50 x 50 mm / Ø 2,9	1250 x 2500 mm	Hot-dip galvanized	2,3 kg/m²
2074541Z	Welded mesh	40 x 40 mm / Ø 4,1	1250 x 2500 mm	Hot-dip galvanized	5,8 kg/m²

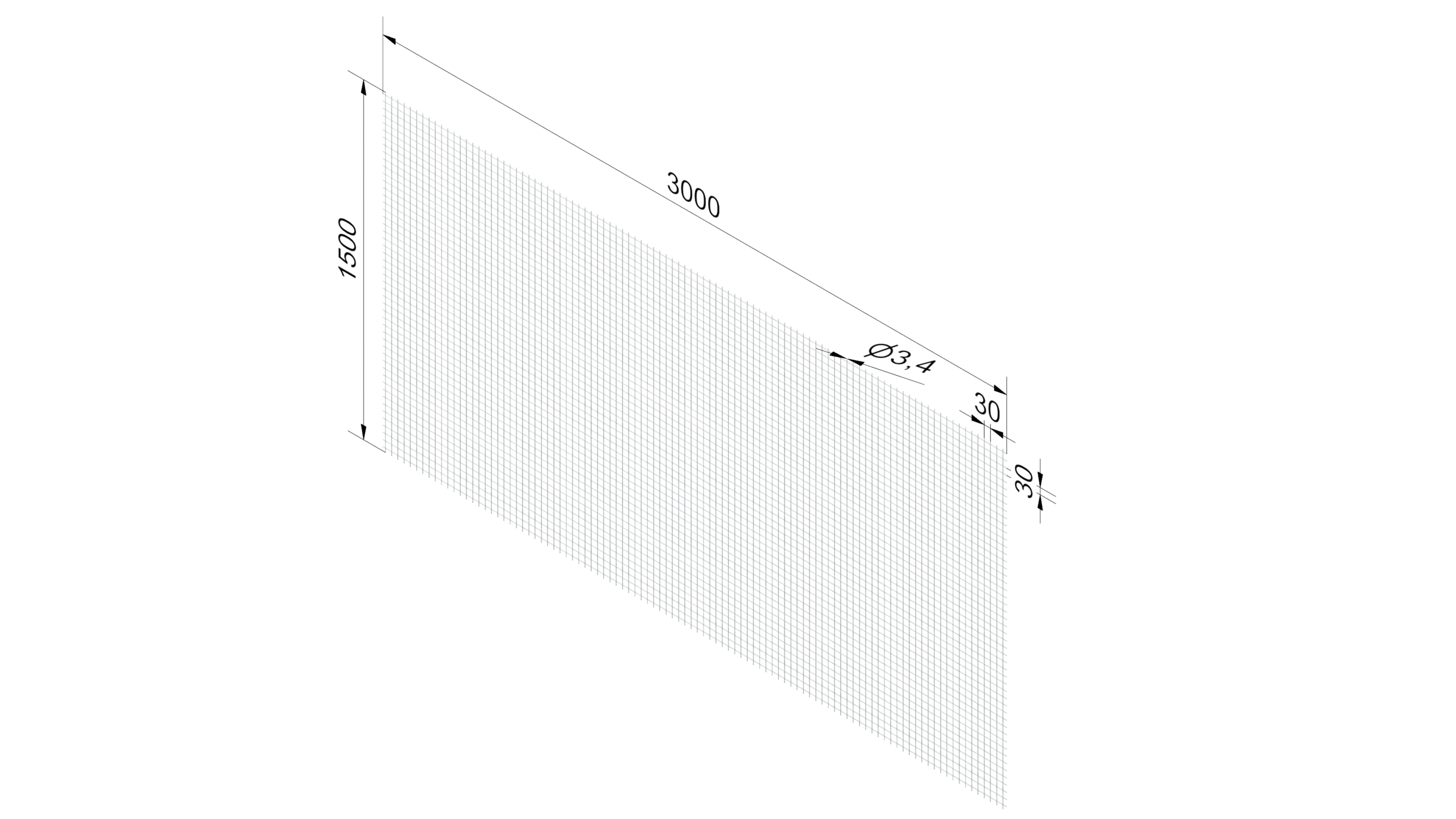

2074535Z	Welded mesh	30 x 30 mm / Ø 3,5	1500 x 3000 mm	Hot-dip galvanized	5,3 kg/m²
2074531Z	Welded mesh	30 x 30 mm / Ø 2,9	1250 x 2500 mm	Hot-dip galvanized	3,7 kg/m²

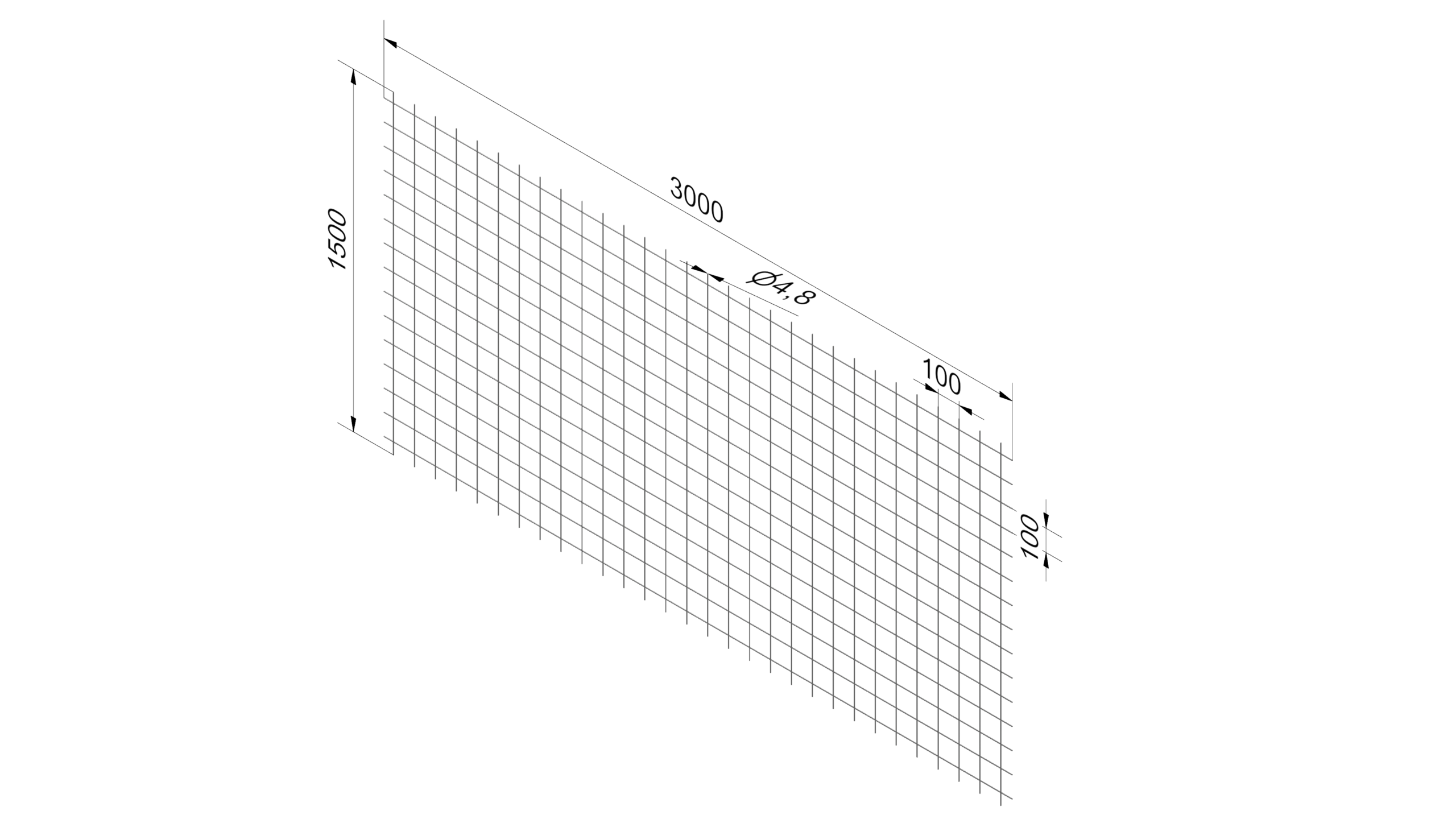

2074563M	Welded mesh	100 x 100 mm / Ø 4,8	1500 x 3000 mm	Raw steel	2,8 kg/m²

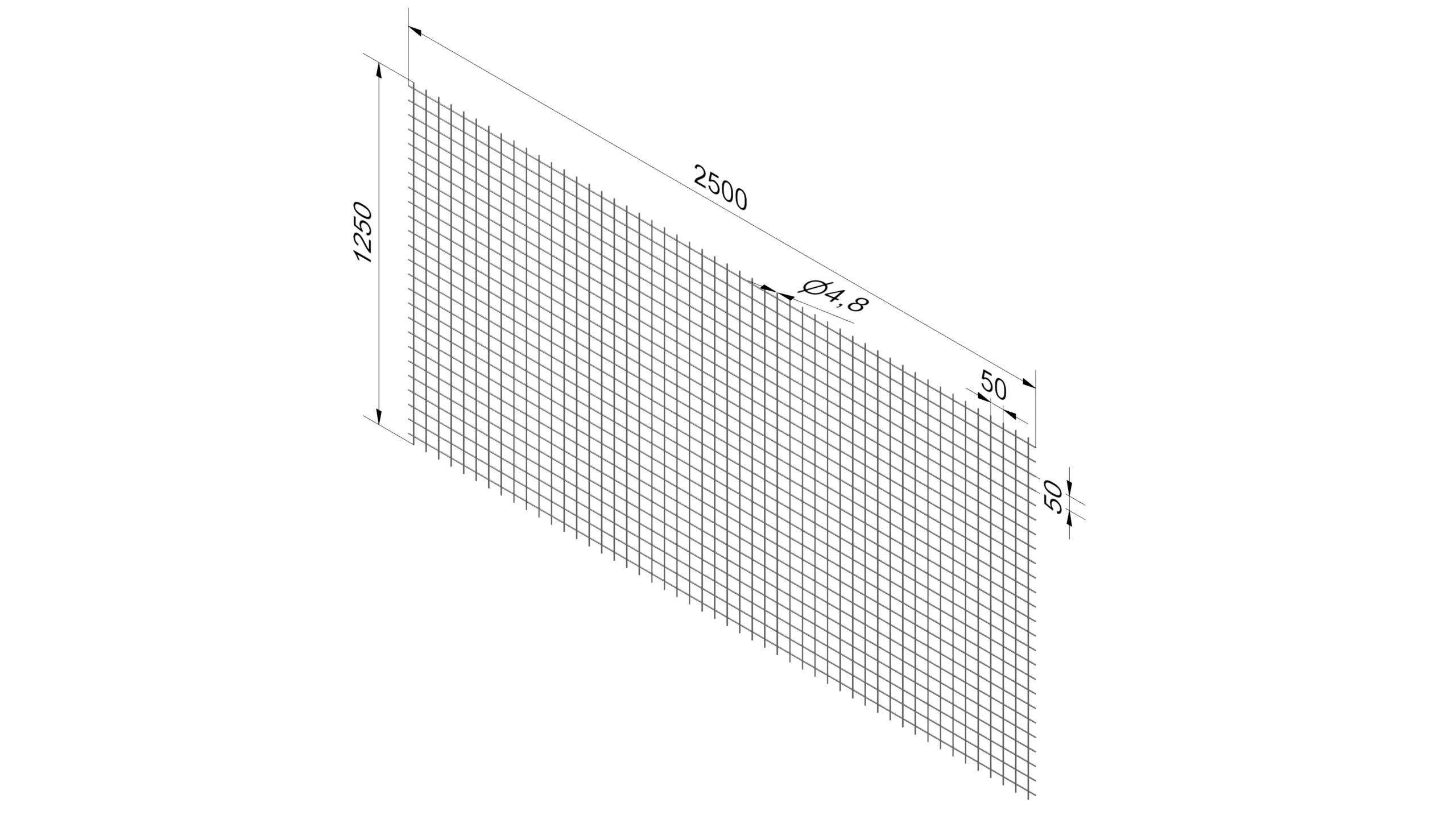

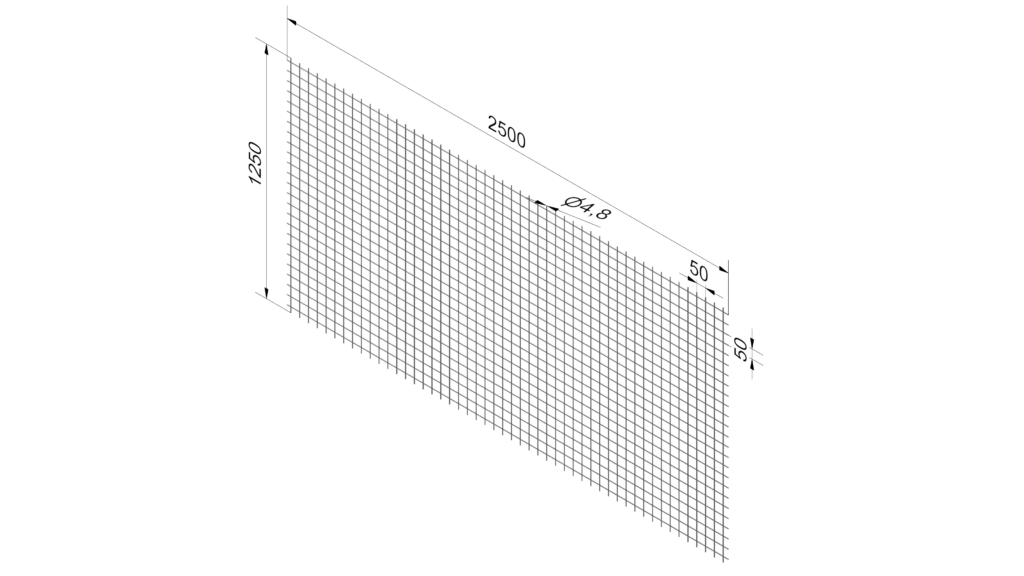

2074557M	Welded mesh	50 x 50 mm / Ø 4,8	1250 x 2500 mm	Raw steel	5,7 kg/m²

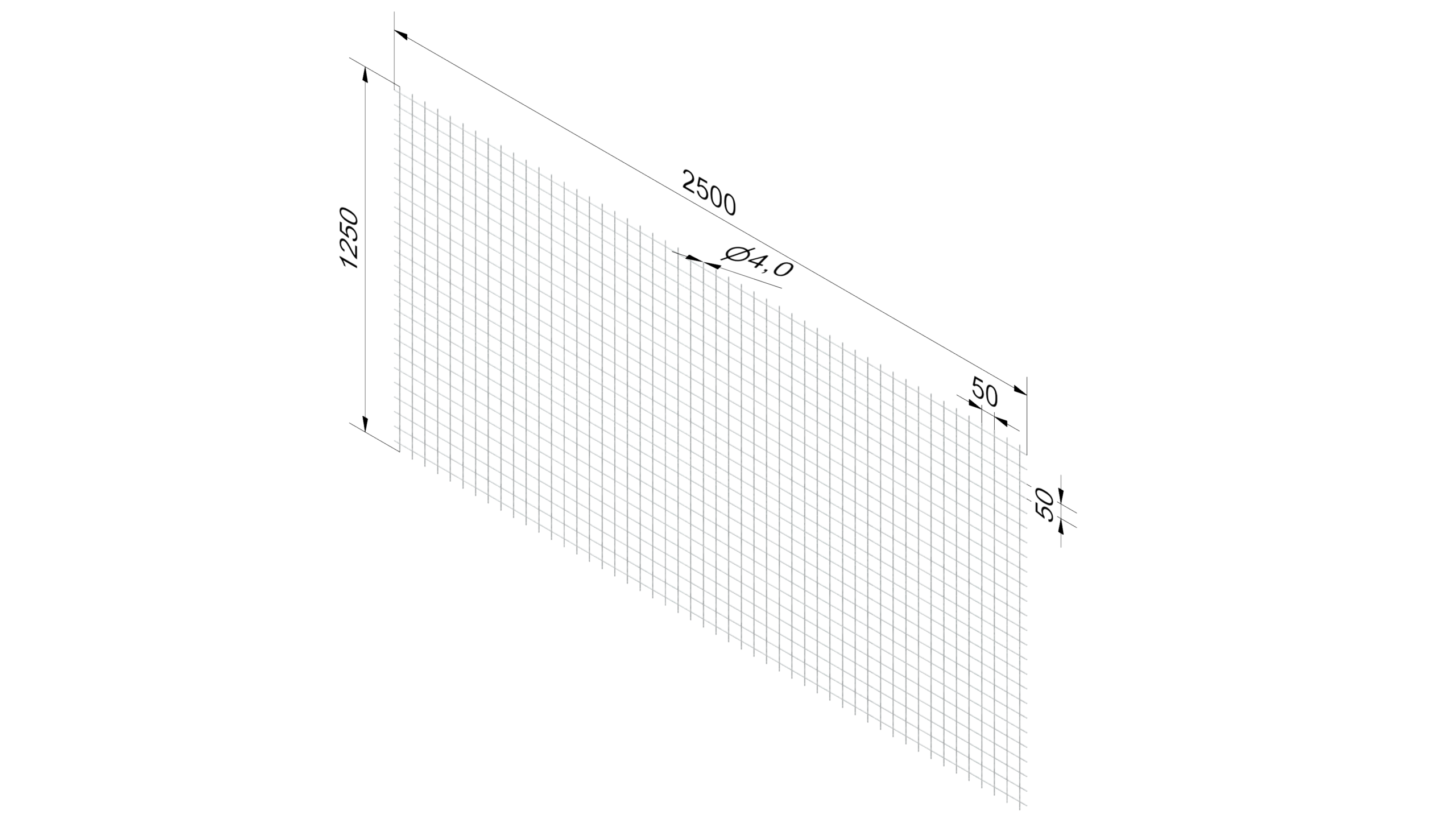

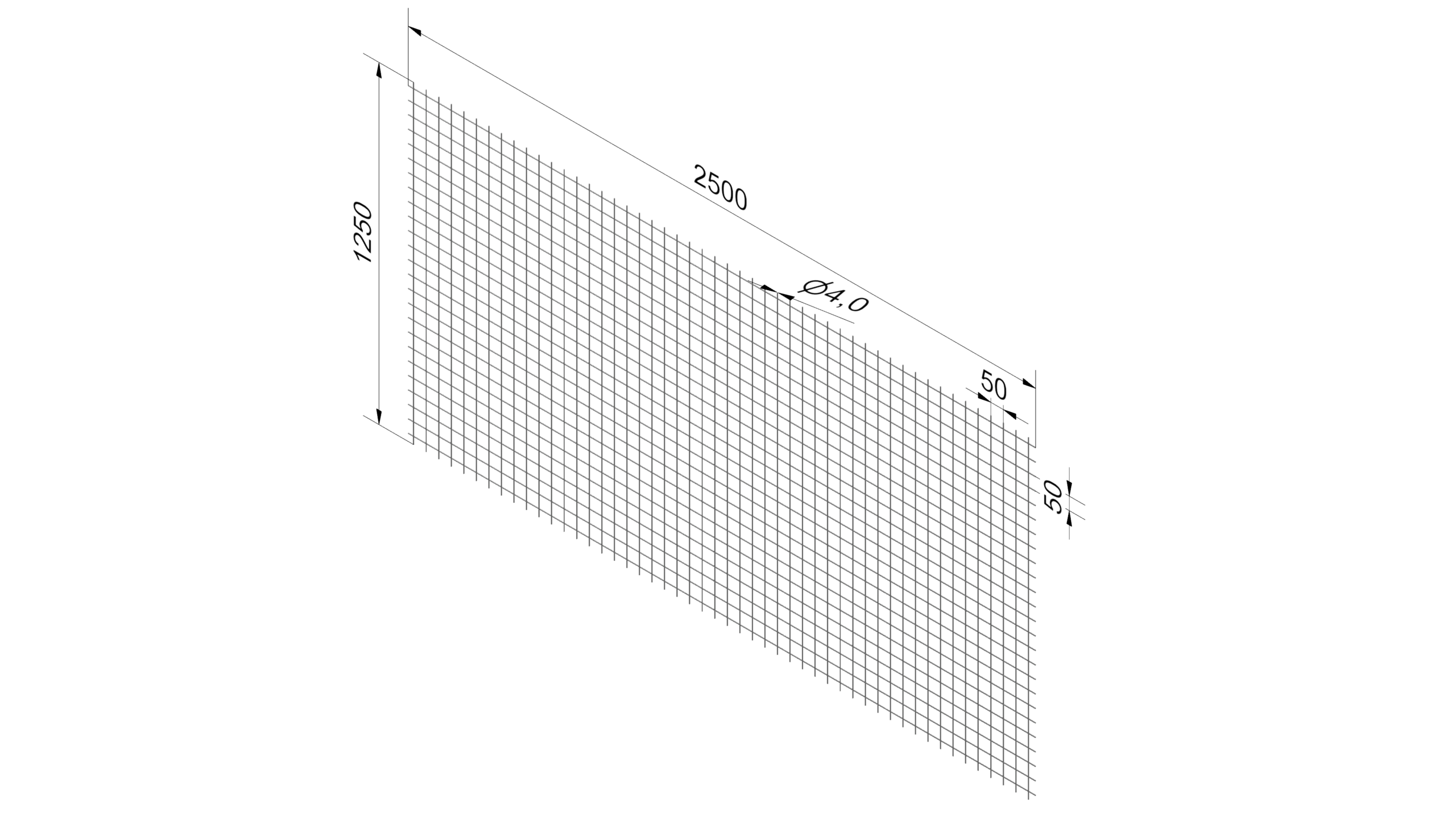

2074554M	Welded mesh	50 x 50 mm / Ø 4	1250 x 2500 mm	Raw steel	4,0 kg/m²

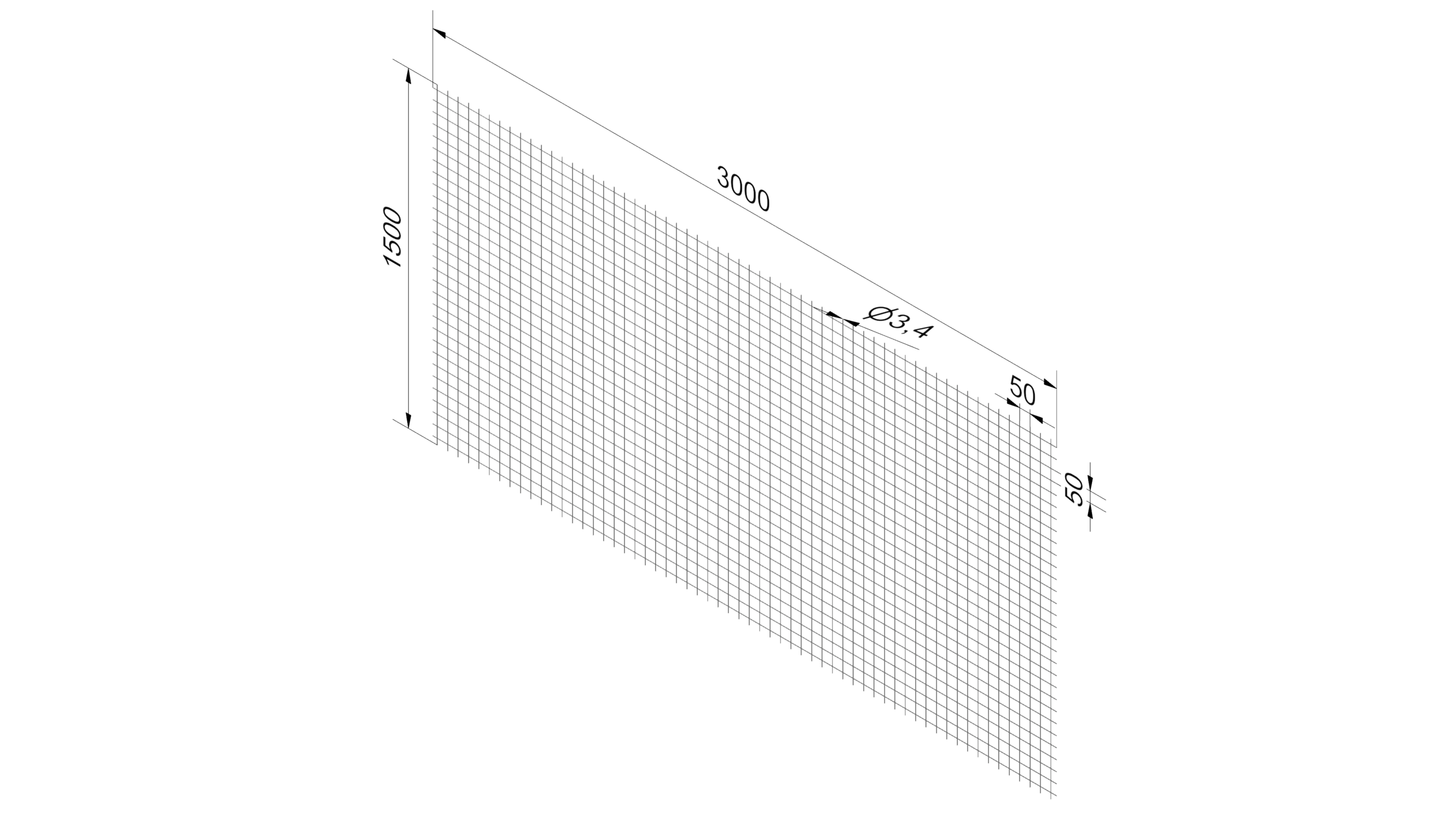

2074552M	Welded mesh	50 x 50 mm / Ø 3,4	1500 x 3000 mm	Raw steel	2,9 kg/m²
2074551M	Welded mesh	50 x 50 mm / Ø 2,8	1250 x 2500 mm	Raw steel	2,0 kg/m²

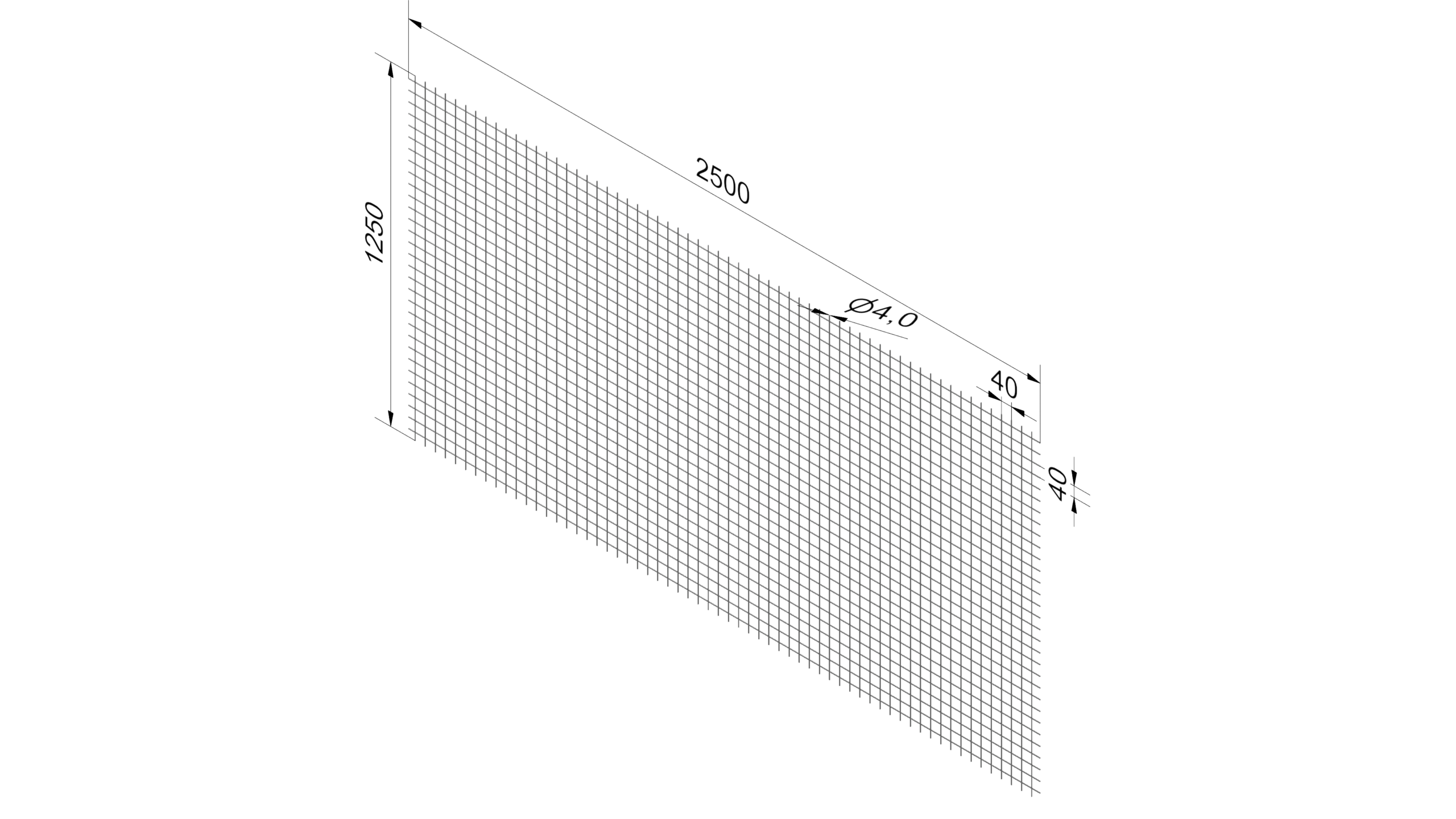

2074541M	Welded mesh	40 x 40 mm / Ø 4	1250 x 2500 mm	Raw steel	5,0 kg/m²
2074535M	Welded mesh	30 x 30 mm / Ø 3,4	1500 x 3000 mm	Raw steel	4,6 kg/m²
2074531M	Welded mesh	30 x 30 mm / Ø 2,8	1250 x 2500 mm	Raw steel	3,2 kg/m²
