Expanded metal mesh
Expanded metal mesh offers durable, easy to shape, and visually striking solutions for many applications. It creates a lively, interesting surface and withstand varying weather conditions well.
The expanded metal mesh is made by cutting and stretching sheet metal, which allows the material to maintain its strength and shape even at demanding sites.
- Durable, formable expanded metal mesh for visually striking surfaces
- Available in multiple materials and finishes, including RAL powder coating and galvanising
- Standard sizes in stock and fast production of customised dimensions

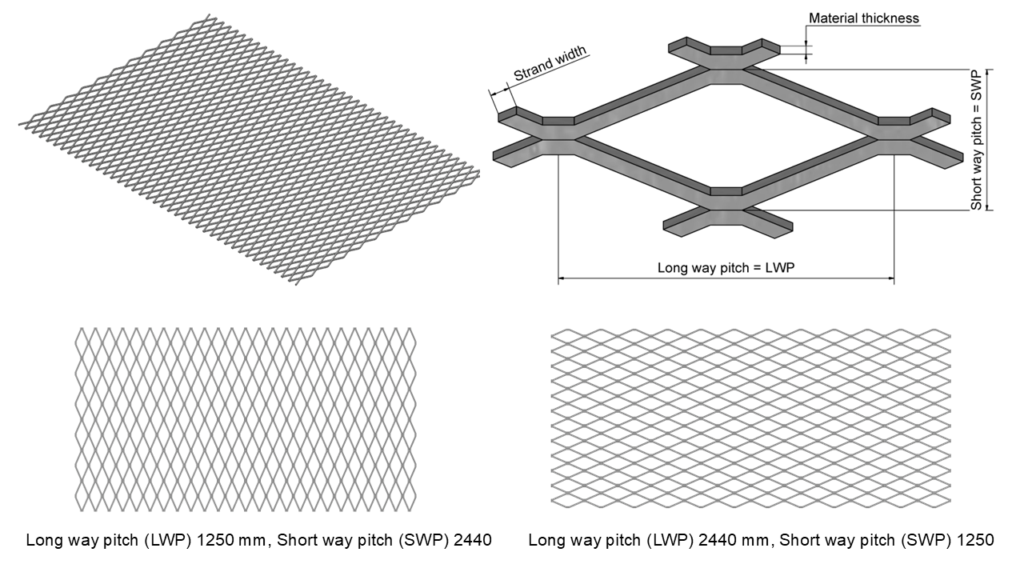

Visually striking expanded metal mesh is produced in various sizes, feeds, and material thicknesses, and can be finished, for example, with powder coating in RAL colour chart shades or alternatively hot-dip or electro-galvanising.
Standard products are made using hot-rolled steel (3–5 mm) and stainless steel (1.5–3 mm).
In addition, expanded metal mesh can be made from weldable raw materials and various special materials, such as stainless and acid-resistant steel, aluminium or marine aluminium, weathering steel, brass, copper, and galvanised steel sheet.
We have several common expanded metal mesh sizes available for immediate delivery. In addition to these, we also quickly manufacture expanded metal mesh of various sizes according to customer wishes, within flexible and fast delivery times.
| Item code | Description | Size | Technical data | Material | Weight |
|---|---|---|---|---|---|
| 2082301M | 10 / 1 / 1 mm | 1000 x 2000 mm | Cold-rolled, Opening 7 x 4 mm | Raw steel | 2,7 kg/m² |

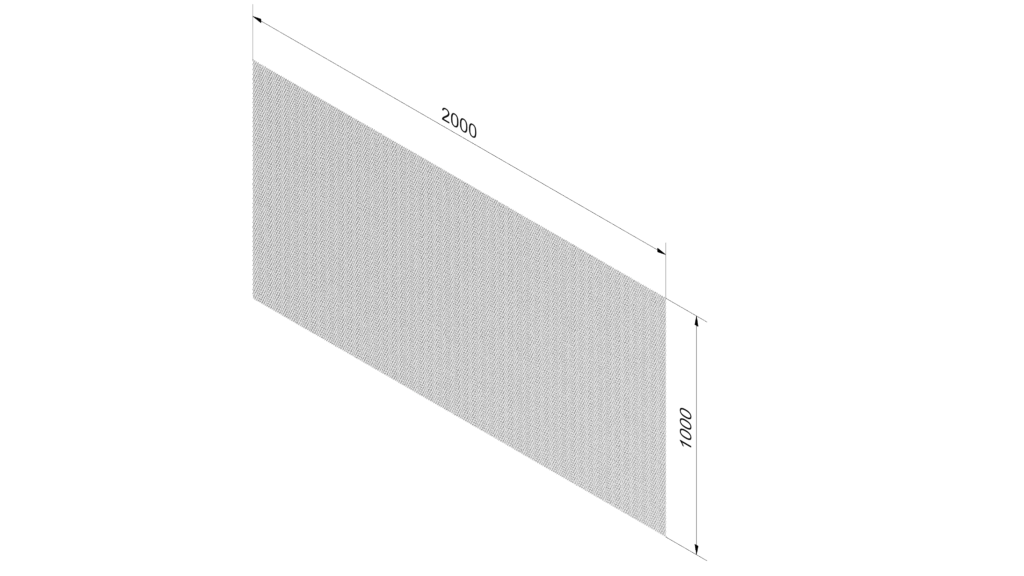

| 2082331M | 20 / 2 / 1,5 mm | 1000 x 2000 mm | Cold-rolled, Opening 14 x 6,5 mm | Raw steel | 5,2 kg/m² |

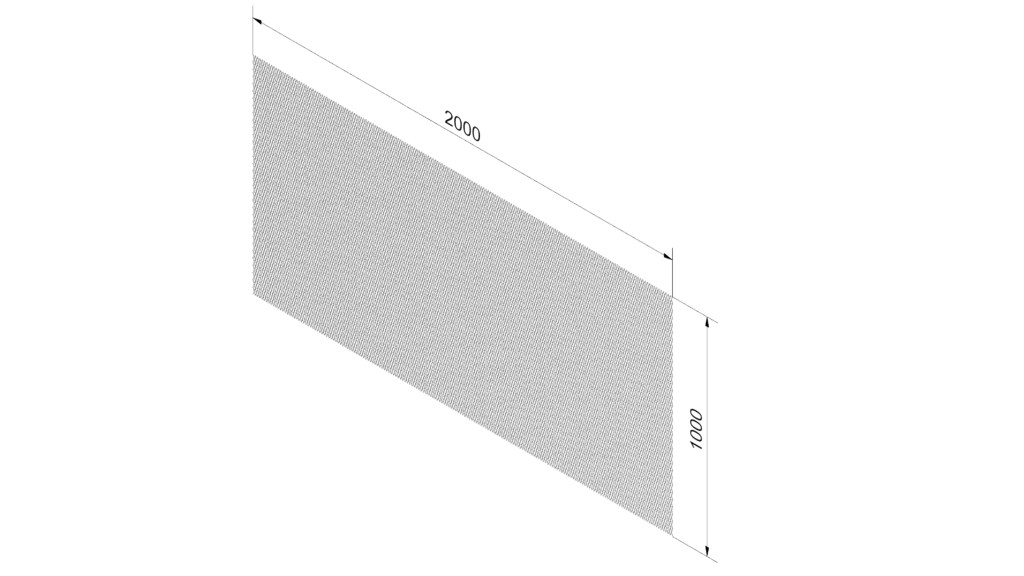

| 2082354M | 30 / 2 / 2 mm | 1000 x 2000 mm | Cold-rolled, Opening 22,5 x 9 mm | Raw steel | 4,2 kg/m² |

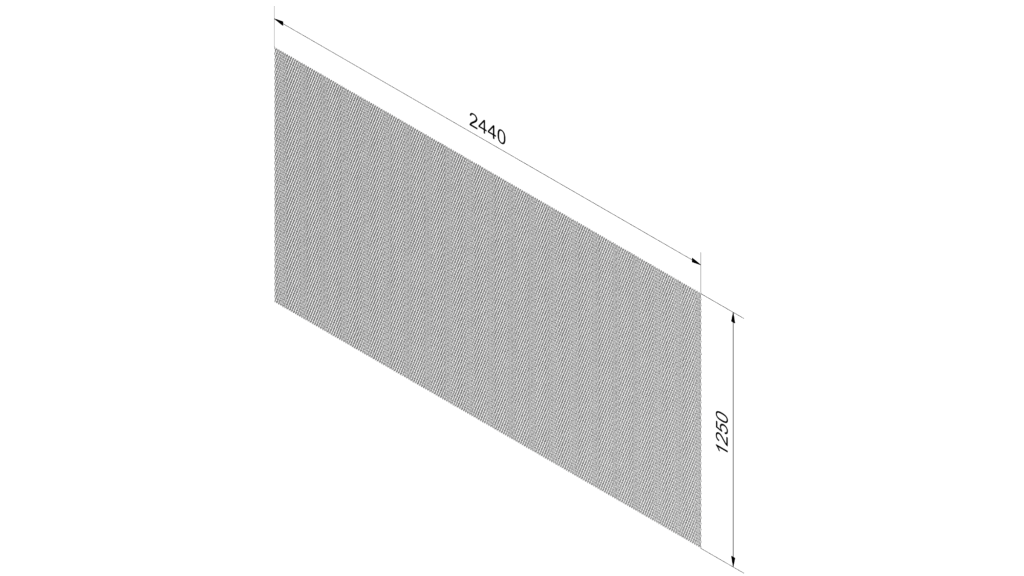

| 2082355M | 30 / 2 / 2 mm | 1250 x 2440 mm | Cold-rolled, Opening 22,5 x 9 mm | Raw steel | 4,2 kg/m² |
| 2082368M | 30 / 3 / 2 mm | 1000 x 2000 mm | Cold-rolled, Opening 22 x 8,5 mm | Raw steel | 7,4 kg/m² |

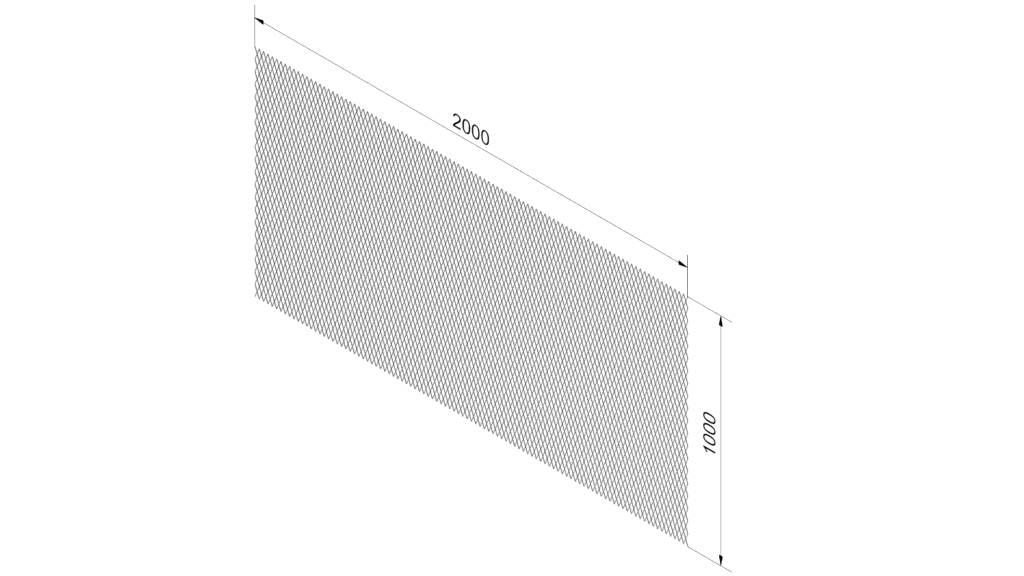

| 2081009M | 50 / 3 / 3 mm | 1000 x 2000 mm | Hot-rolled, Opening 36 x 17 mm | Raw steel | 5,9 kg/m² |

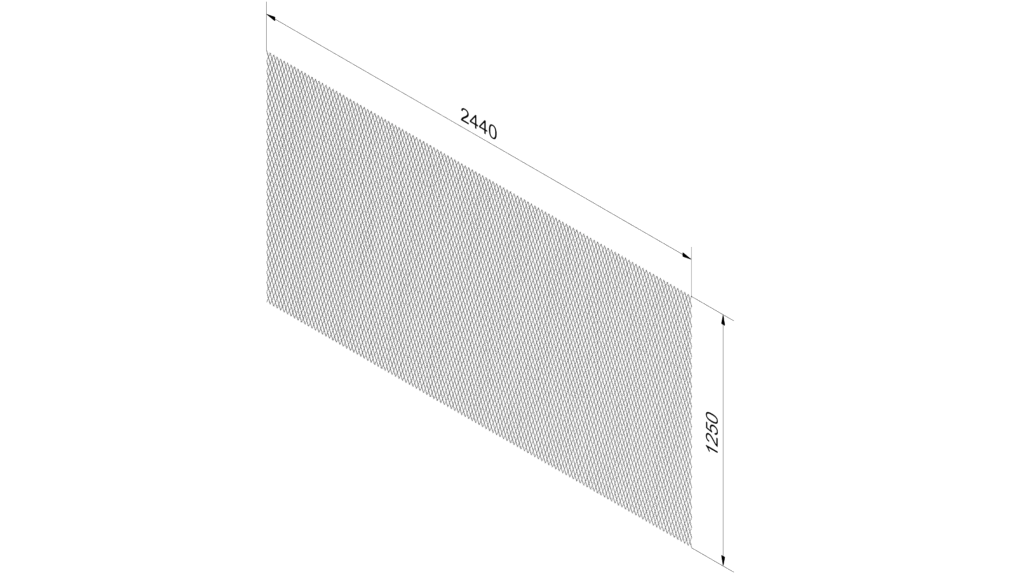

| 2081010M | 50 / 3 / 3 mm | 1250 x 2440 mm | Hot-rolled, Opening 36 x 17 mm | Raw steel | 5,9 kg/m² |

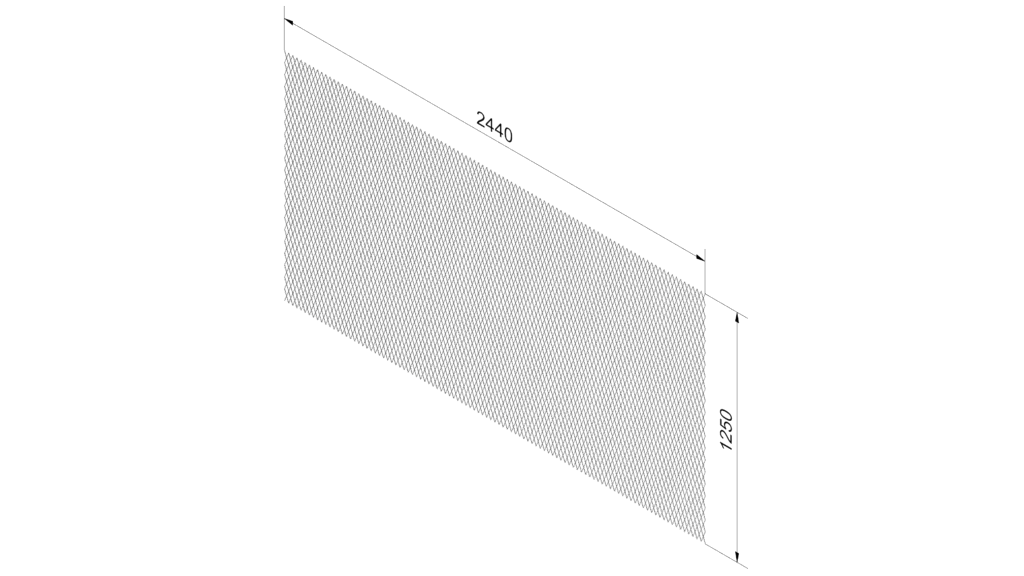

| 2081026M | 60 / 3 / 3 mm | 1250 x 2440 mm | Hot-rolled, Opening 49 x 21 mm | Raw steel | 5,1 kg/m² |

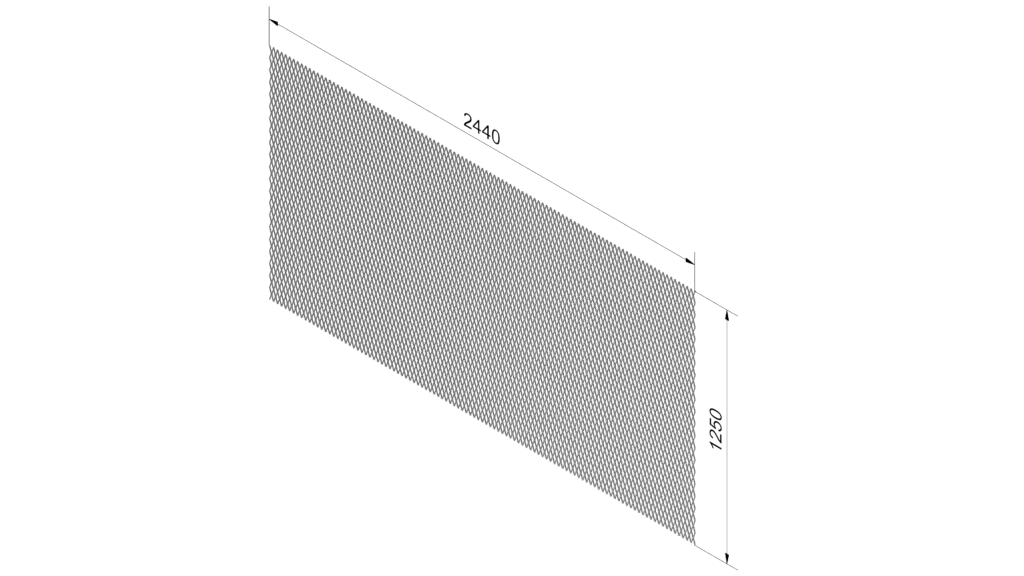

| 2081042M | 60 / 6 / 5 mm | 1250 x 2440 mm | Hot-rolled, Opening 42,5 x 17 mm | Raw steel | 16,7 kg/m² |

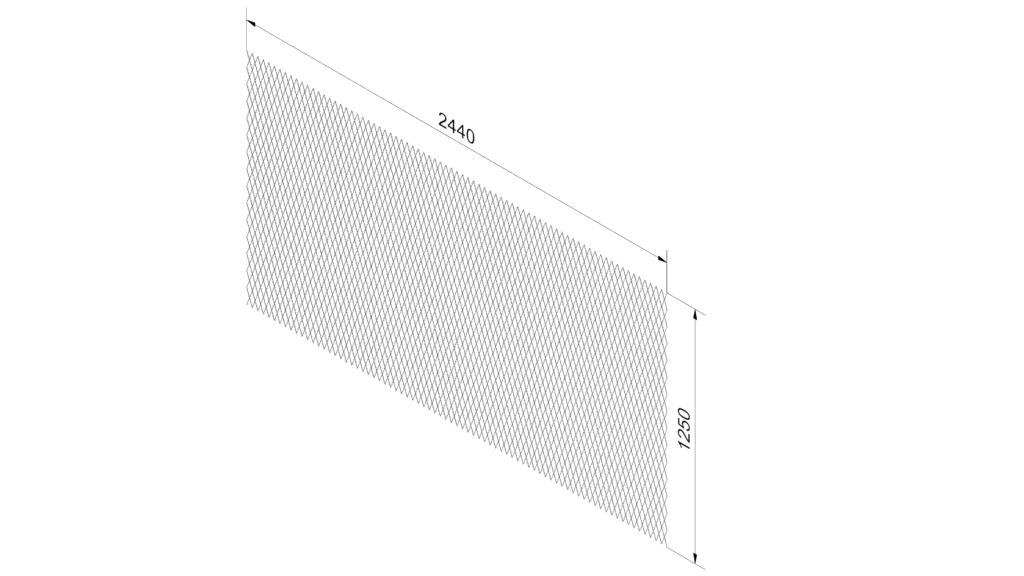

| 2081087M | 85 / 3 / 3 mm | 1250 x 2440 mm | Hot-rolled, Opening 72 x 32 mm | Raw steel | 3,9 kg/m² |
| 2081109M | 85 / 7 / 5 mm | 1250 x 2440 mm | Hot-rolled, Opening 68 x 29mm | Raw steel | 12,9 kg/m² |
