Welded mesh

Tammet’s welded protective mesh is a versatile and durable solution for various applications, such as ceilings, facades, partition walls, machine guards, and structures that require a strong and precise protection mesh.

We offer standard meshes with wire dimensions ranging from 2.8 to 4.8 mm, and the wires we use meet the requirements of the EN ISO 16120-2:2011 standard.

  • Kestävät hitsatut suojaverkot alakattoihin, julkisivuihin ja teknisiin rakenteisiin
  • Laaja lankavahvuus- ja materiaalivalikoima, myös ruostumattomat ja haponkestävät vaihtoehdot
  • Asiakaskohtaiset mitat ja RAL-maalatut tai sinkityt pinnat nopeilla toimituksilla

Meshes made of steel wire can be powder coated according to the RAL colour chart or alternatively hot-dip or electro-galvanised, while their shaping and cutting can easily be done for various installation and design needs.n.

For more customised applications, we also manufacture heavier meshes on special order, with wire thickness of up to 8.0 mm. Additionally, we offer protective meshes made from stainless and acid-resistant steel wire for demanding environments, such as construction, food, and chemical industries, where corrosion resistance, safety, and hygiene are paramount.

The meshes are delivered as flat sheets on pallets, which facilitates easy handling, storage, and transportation while simultaneously reducing the risk of damage.

In addition to our wide range and quick deliveries, we also offer custom sized products and solutions, including dimensions and surface treatments, in accordance with any special requirements.

This ensures that every customer receives a durable and high-quality mesh solution that is precisely suitable for their application.

Item code Item Technical data Size Material Weight Image

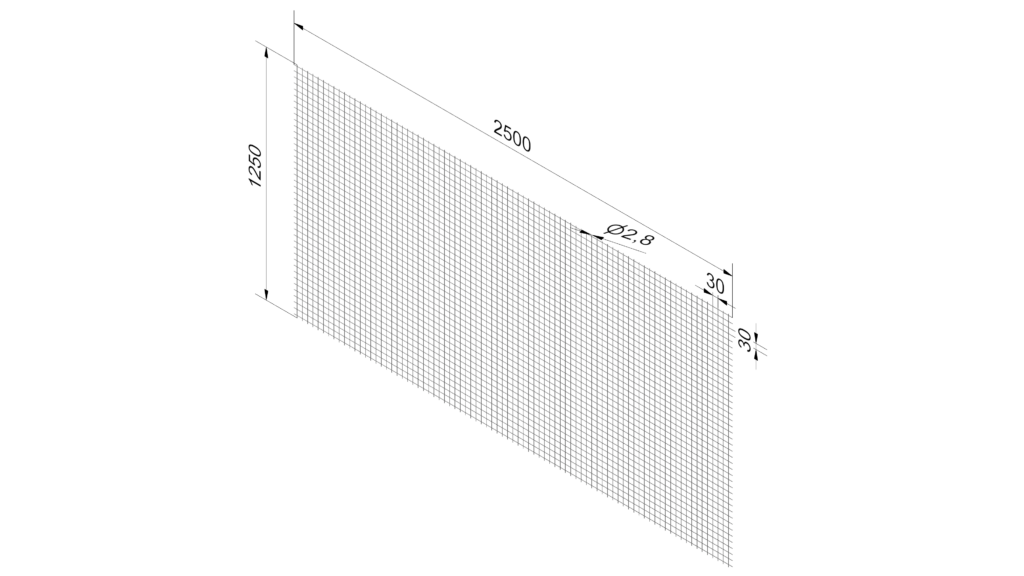

2074531M Welded mesh 30 x 30 mm / Ø 2,8 1250 x 2500 mm Raw steel 3,2 kg/m²
2074535M Welded mesh 30 x 30 mm / Ø 3,4 1500 x 3000 mm Raw steel 4,6 kg/m²

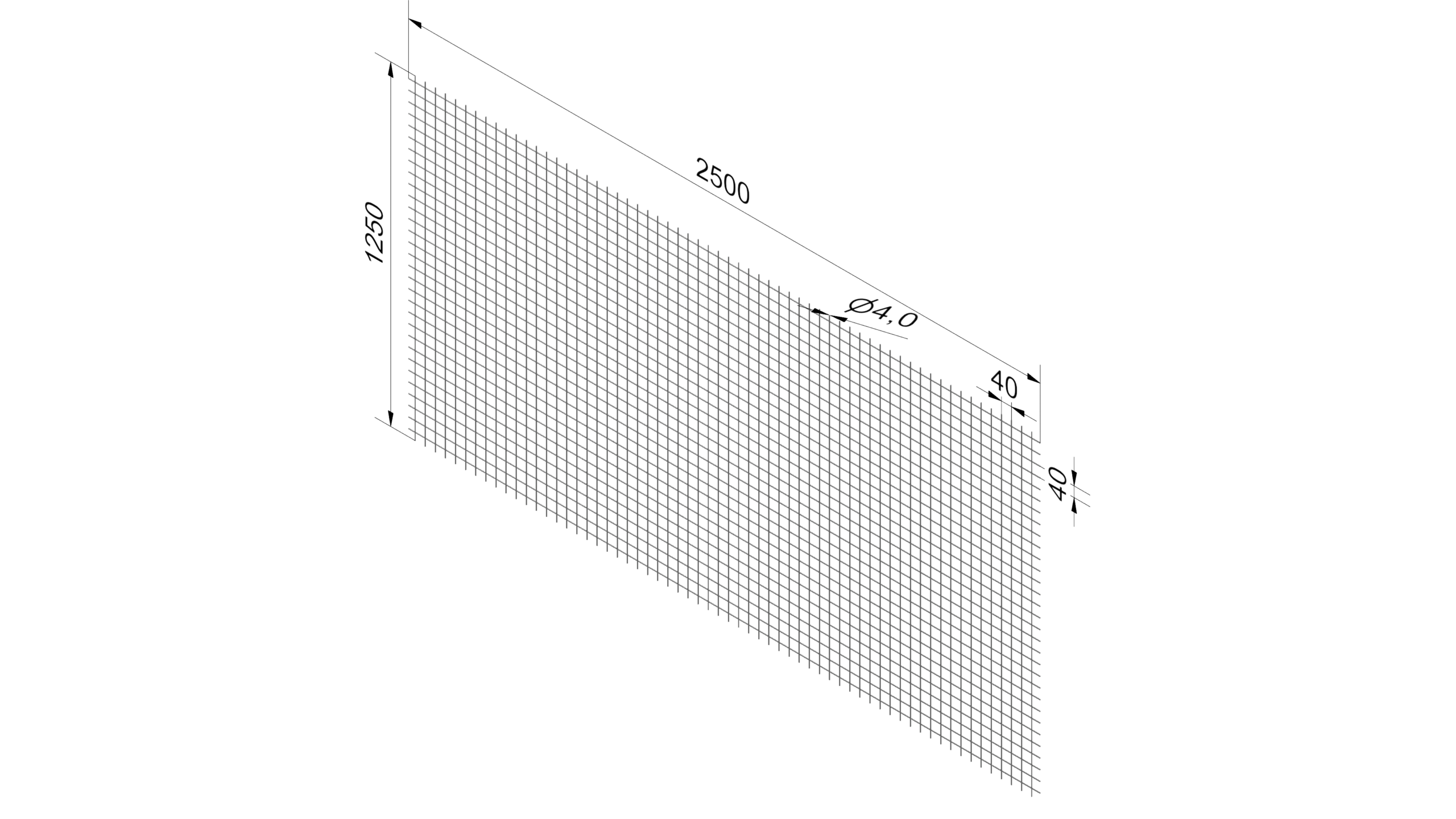

2074541M Welded mesh 40 x 40 mm / Ø 4 1250 x 2500 mm Raw steel 5,0 kg/m²
2074551M Welded mesh 50 x 50 mm / Ø 2,8 1250 x 2500 mm Raw steel 2,0 kg/m²

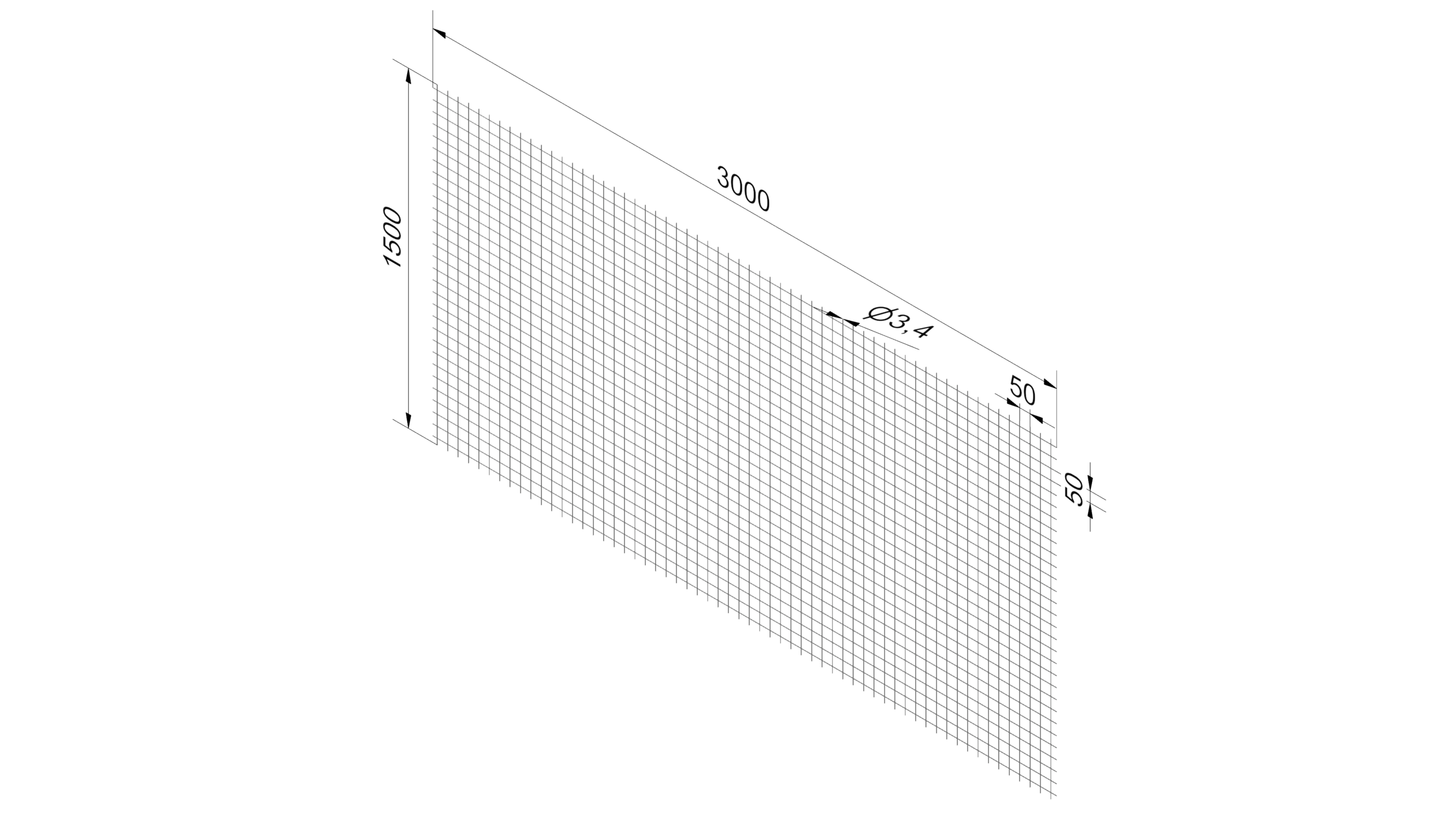

2074552M Welded mesh 50 x 50 mm / Ø 3,4 1500 x 3000 mm Raw steel 2,9 kg/m²

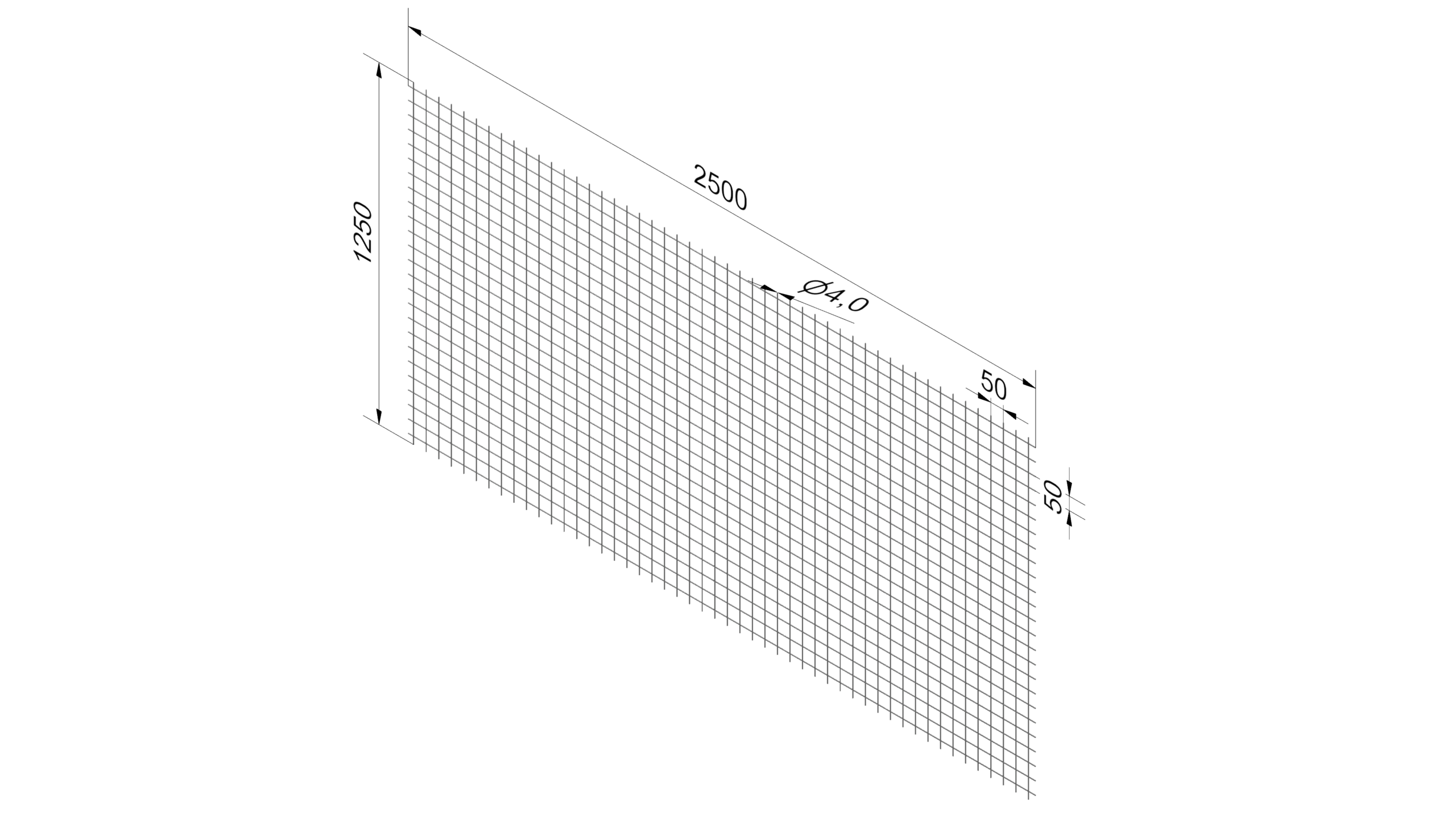

2074554M Welded mesh 50 x 50 mm / Ø 4 1250 x 2500 mm Raw steel 4,0 kg/m²

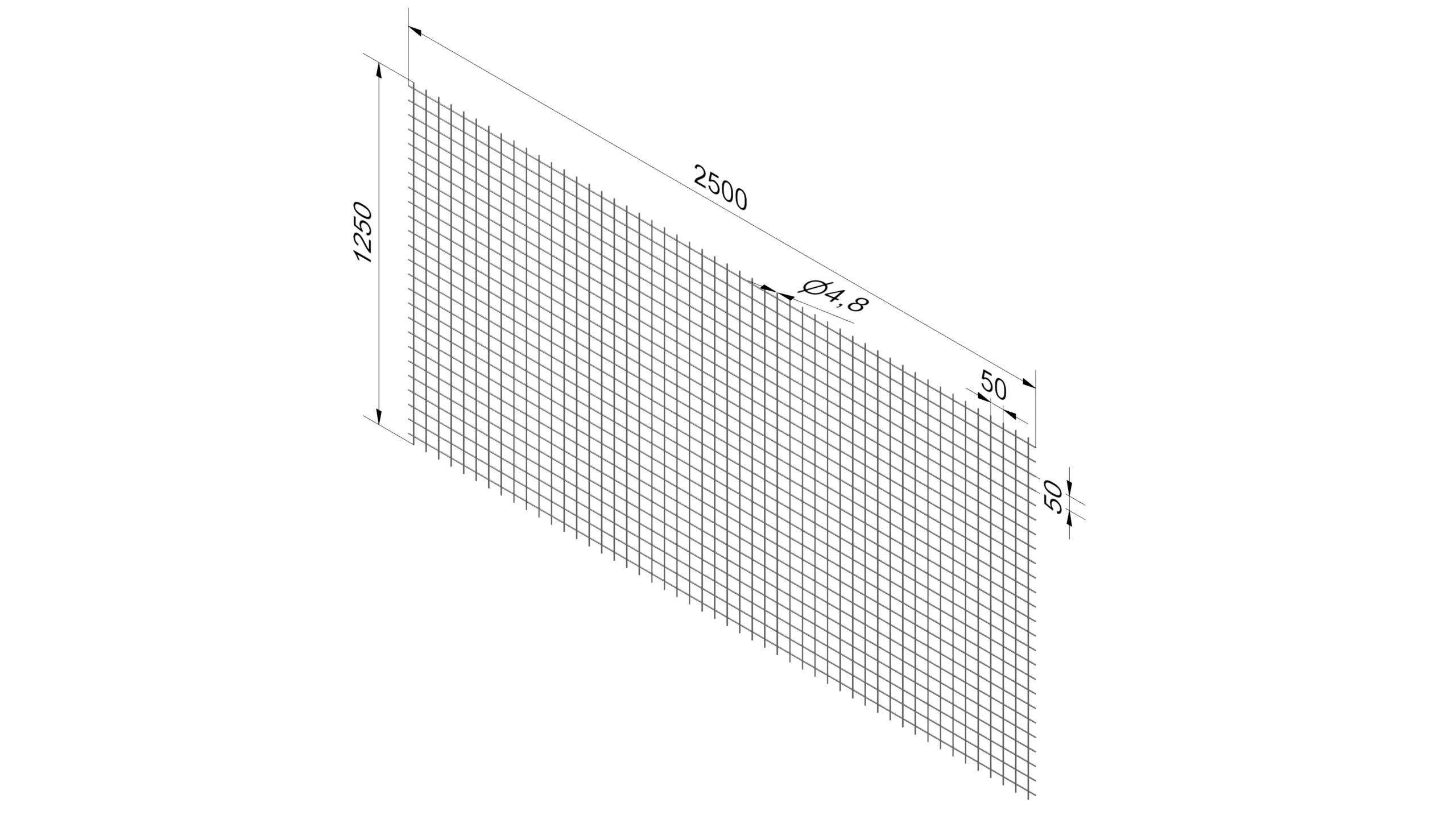

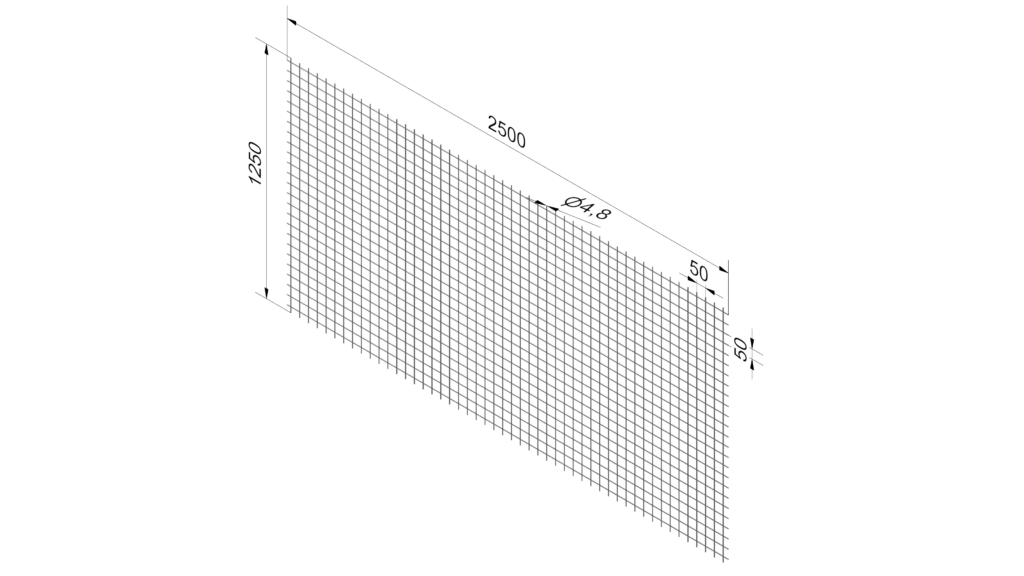

2074557M Welded mesh 50 x 50 mm / Ø 4,8 1250 x 2500 mm Raw steel 5,7 kg/m²

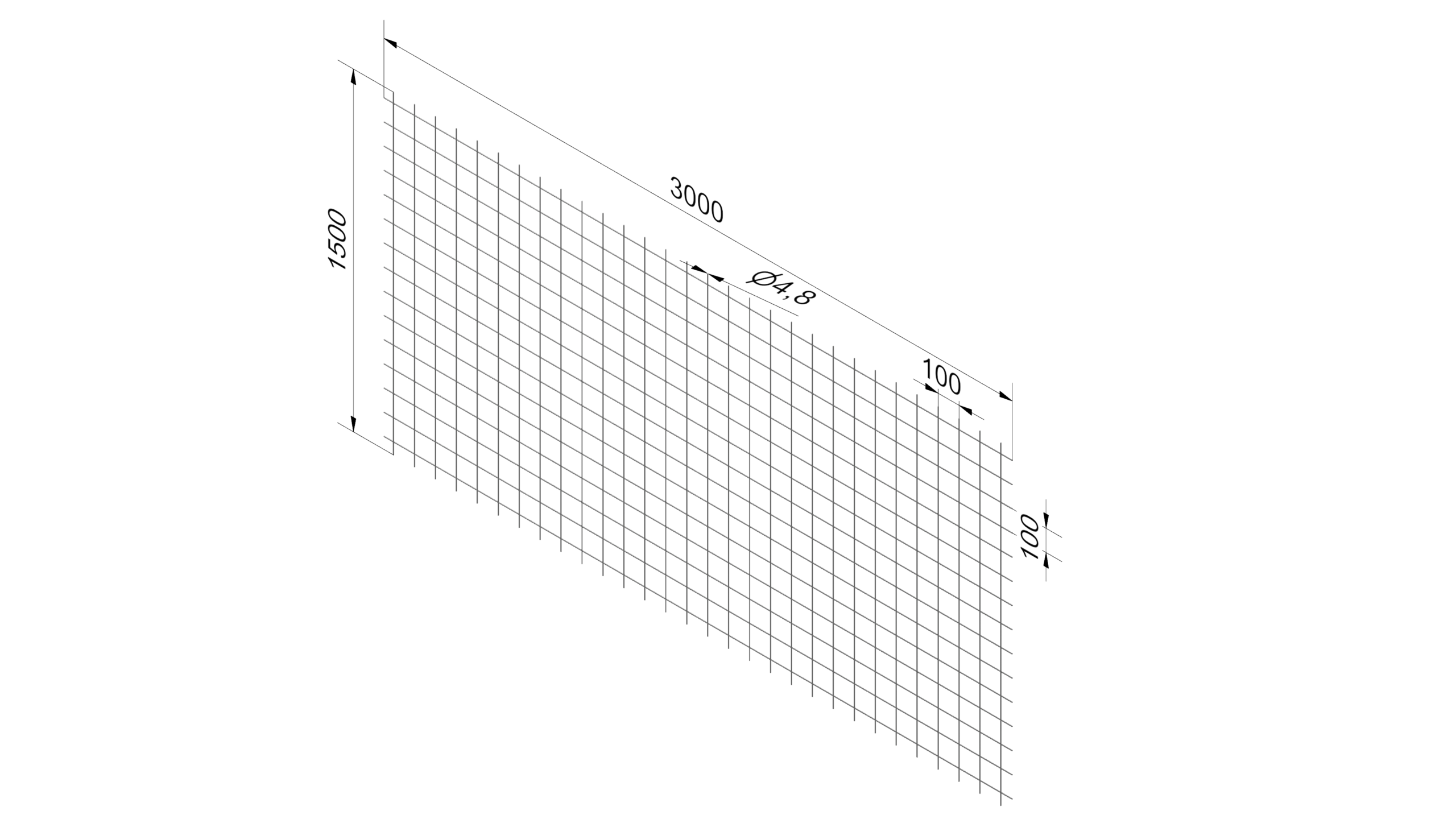

2074563M Welded mesh 100 x 100 mm / Ø 4,8 1500 x 3000 mm Raw steel 2,8 kg/m²
2074531Z Welded mesh 30 x 30 mm / Ø 2,9 1250 x 2500 mm Hot-dip galvanized 3,7 kg/m²

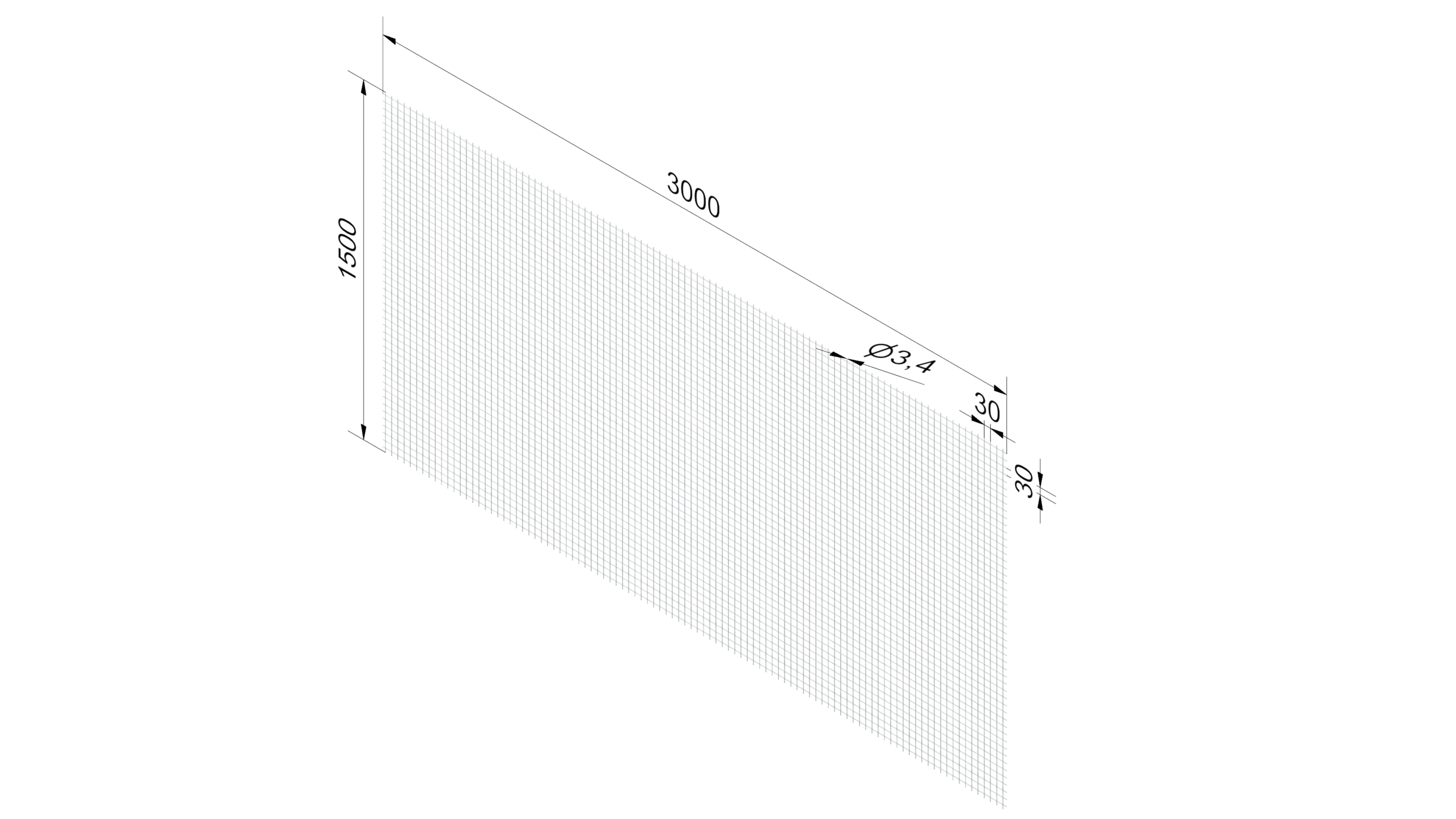

2074535Z Welded mesh 30 x 30 mm / Ø 3,5 1500 x 3000 mm Hot-dip galvanized 5,3 kg/m²
2074541Z Welded mesh 40 x 40 mm / Ø 4,1 1250 x 2500 mm Hot-dip galvanized 5,8 kg/m²

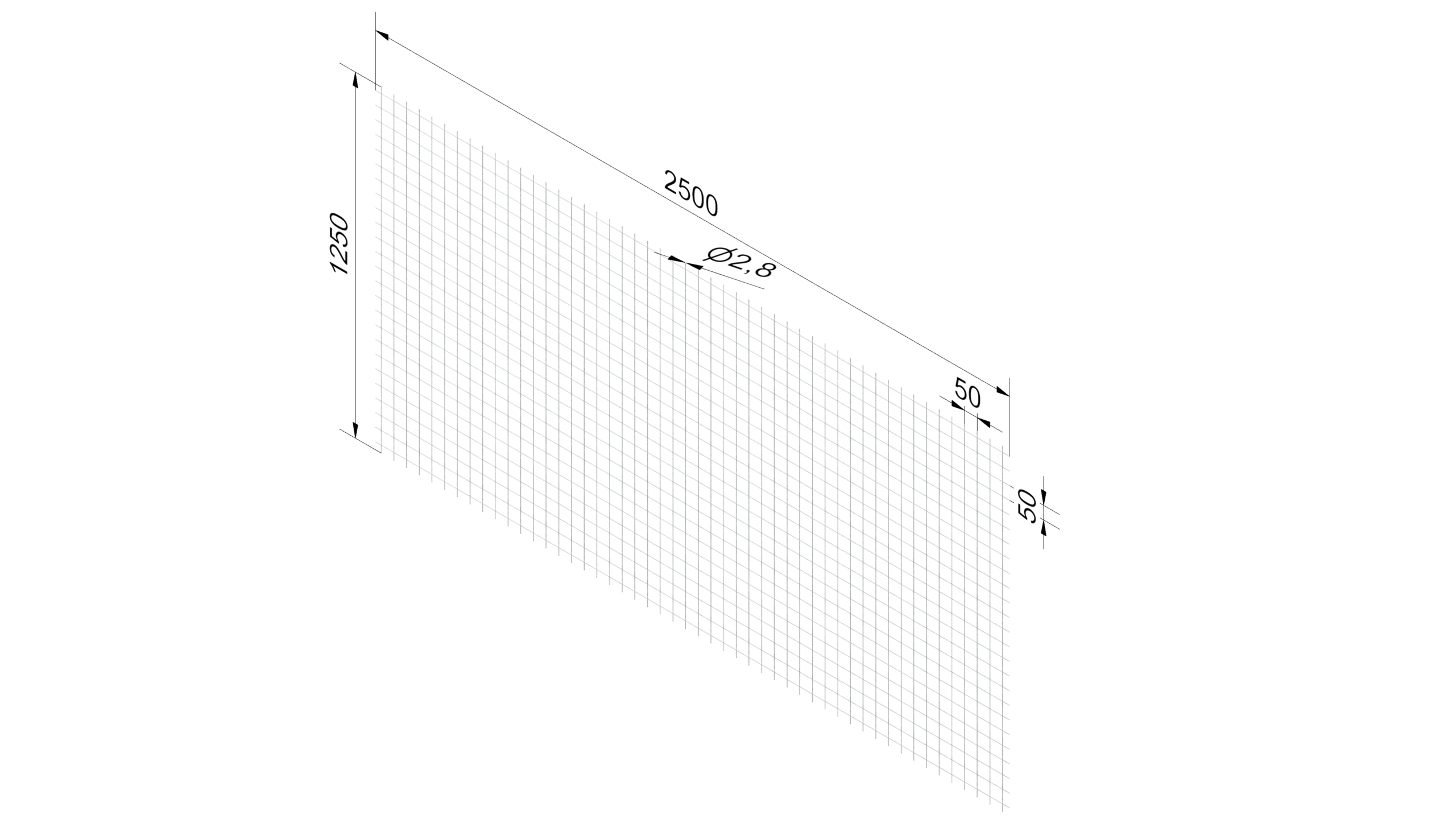

2074551Z Welded mesh 50 x 50 mm / Ø 2,9 1250 x 2500 mm Hot-dip galvanized 2,3 kg/m²

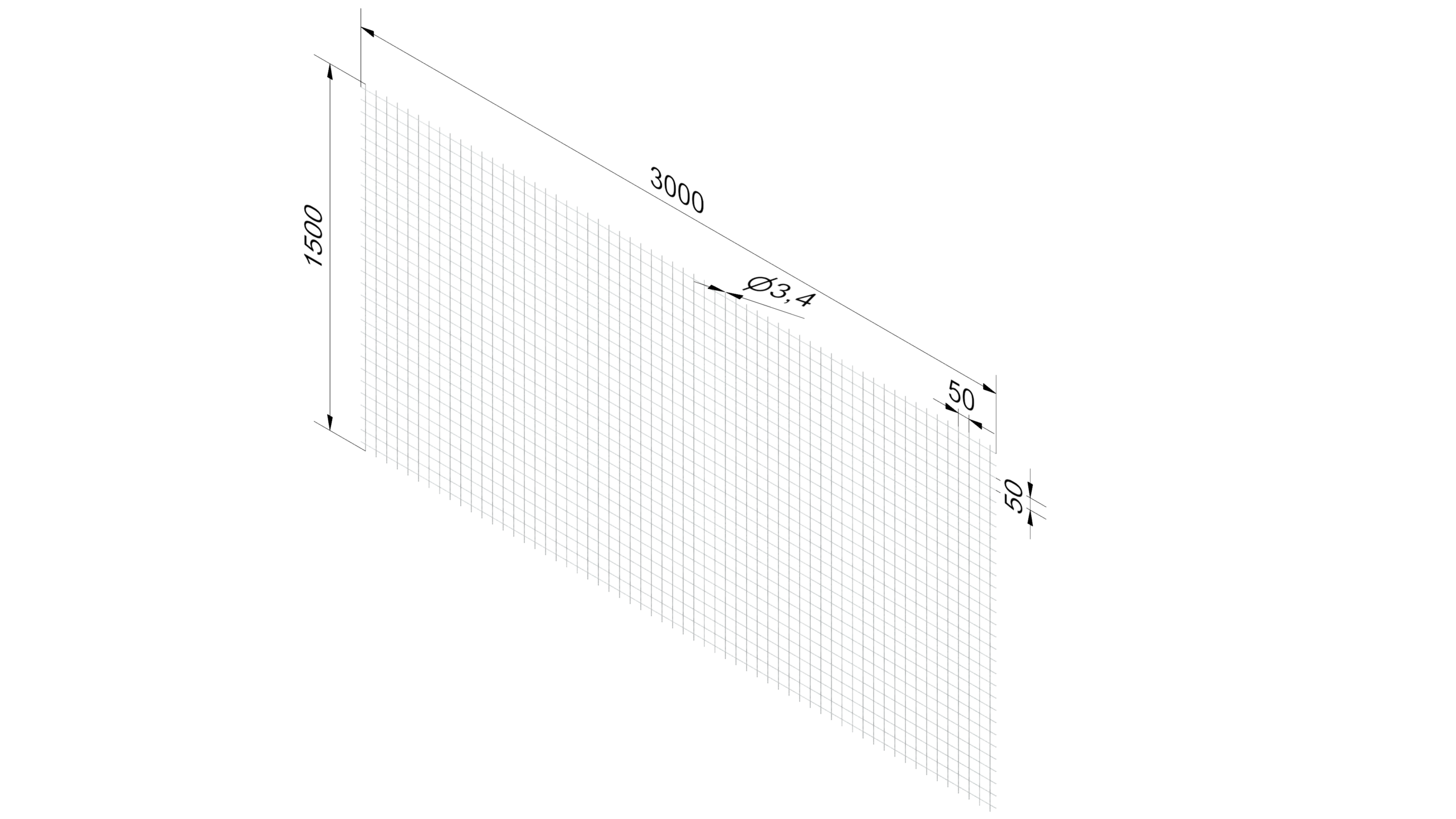

2074552Z Welded mesh 50 x 50 mm / Ø 3,5 1500 x 3000 mm Hot-dip galvanized 3,3 kg/m²

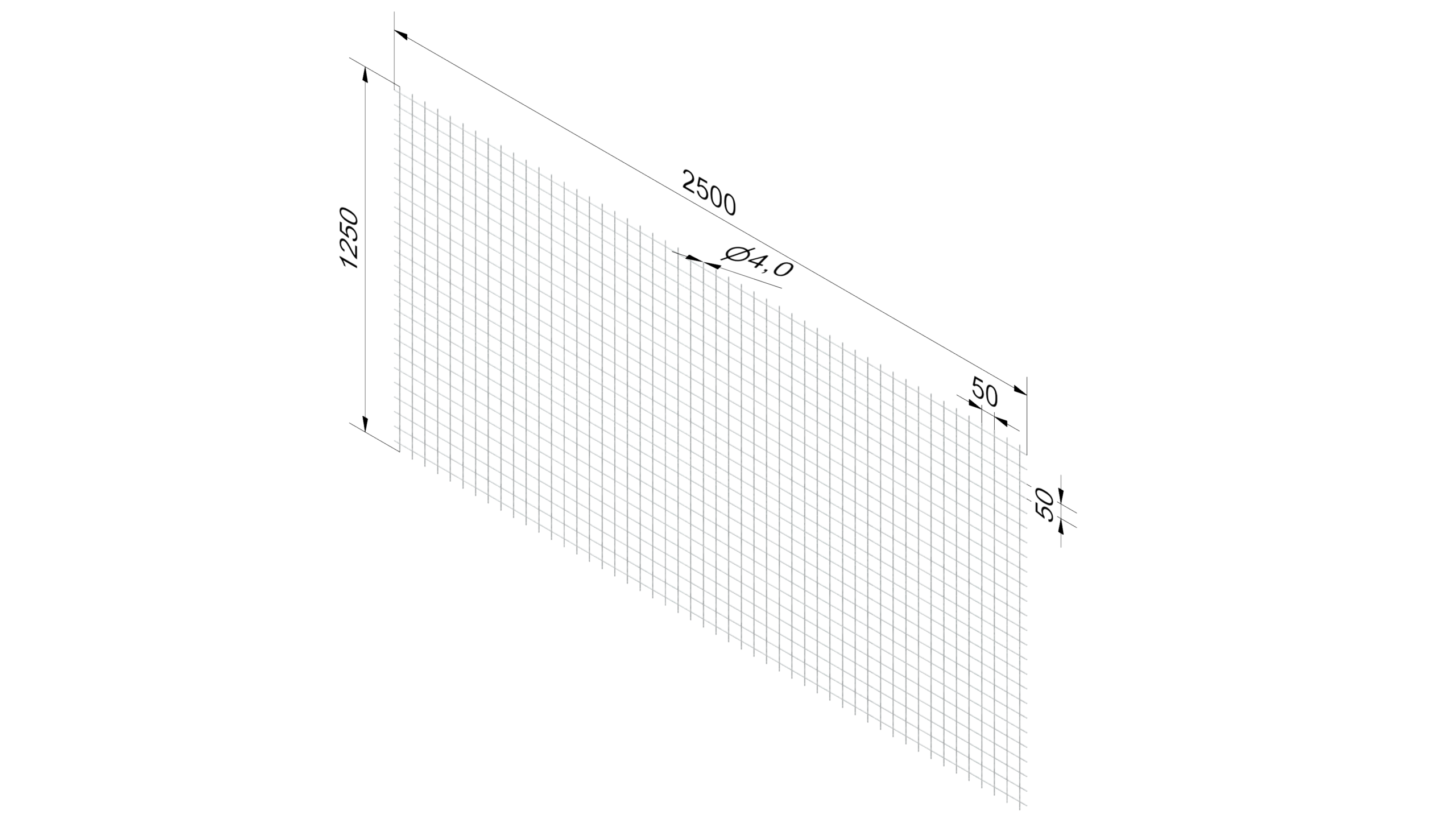

2074554Z Welded mesh 50 x 50 mm / Ø 4,1 1250 x 2500 mm Hot-dip galvanized 4,6 kg/m²
